SPECIFICATIONS

Applicable Industries: Farms, Printing Shops, Food & Beverage Shops, Other

Brand Name: NoEnName_Null,YUGONG

Certification: CE

Condition: New,New

Core Components: Bearing

Dimension(L*W*H): 3410*1700*3100

High-concerned chemical: None

Machinery Test Report: Not Available

Marketing Type: New Product 2024

Origin: Mainland China

Place of Origin: Henan, China

Power: 3kw

Showroom Location: None

Video outgoing-inspection: Not Available

Voltage: AC380V

Warranty: 1 Year

Warranty of core components: 1 Year

Weight (KG): 600

Please note:
1.The price only for reference, the specific cost based on your requirements and the destination port, please feel free to contact us for more details and quotations of the product

2.We ship you by sea !!!

3.Door to door , please leave message or contact TIM for a free quotation

Contact us NOW !! Seize This Deal Today!

E-mail: yugongsales1@yg797.com

WhatsApp/WeChat/Mobile: +86 18339295069

lProducts Description

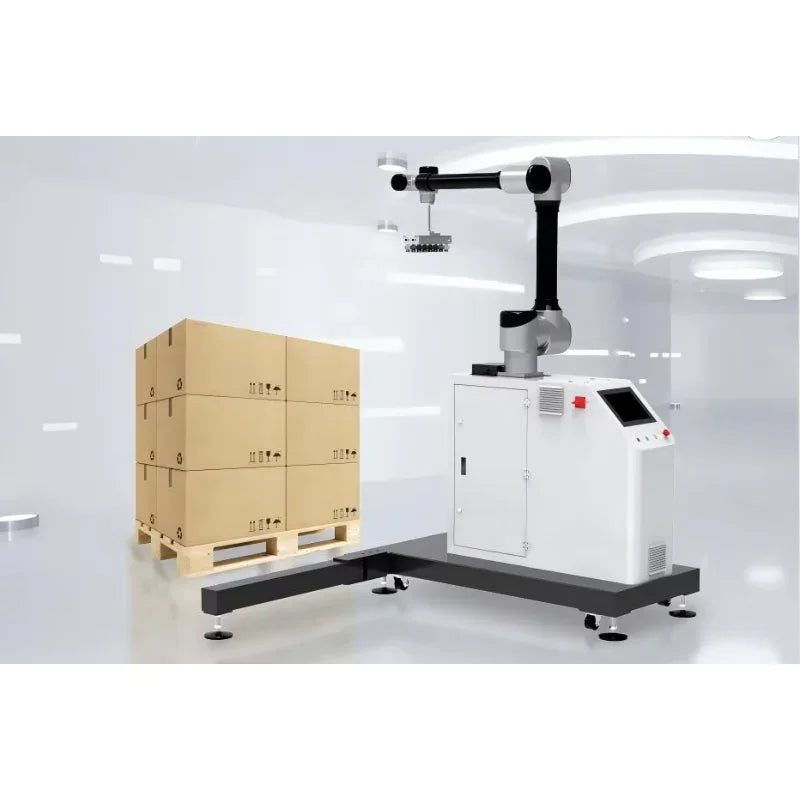

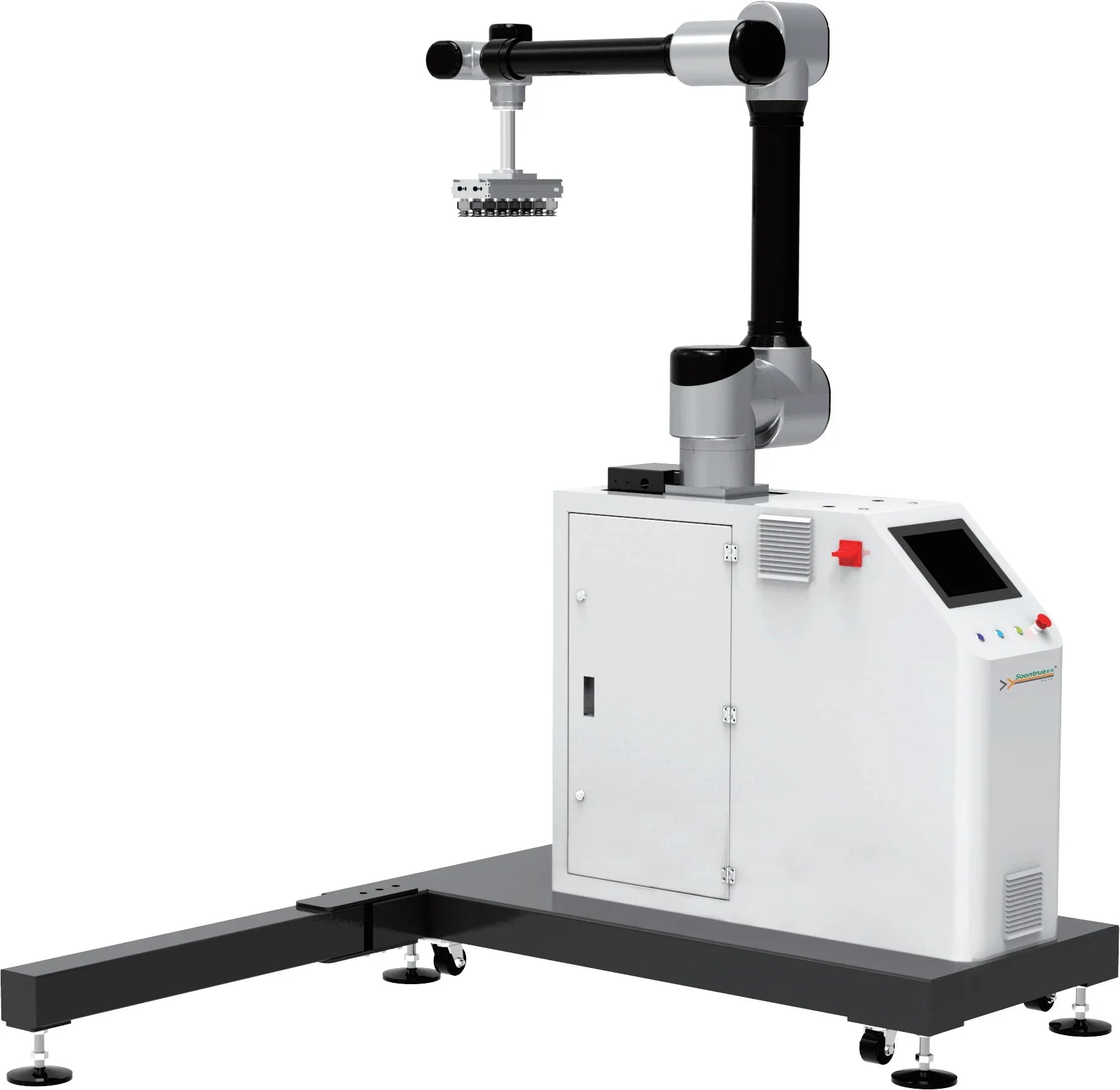

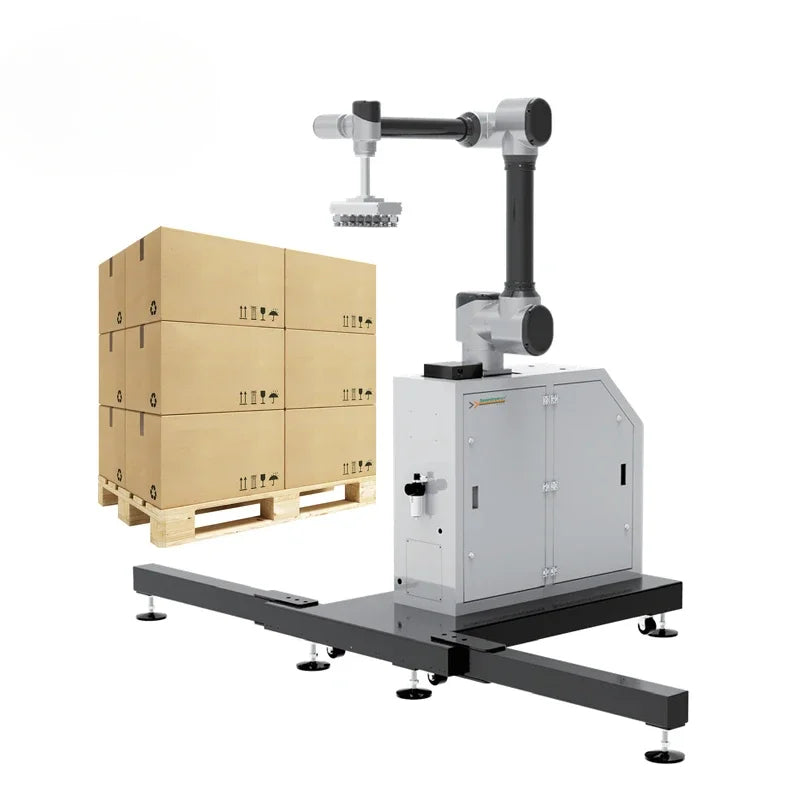

Automatic Industrial Collaborative Palletizing Robot

Specification

Palletizing Speed (boxes /min)			8~12boxes/min
Pallet Dimension	Length(mm)	1200
		Width(mm)	1200
		Height(mm)	150
Pallet Arrangement			Manual/One left and one right
Bearing			Max.30kg
Palletizing Height			≤2000mm(bollard 600mm)

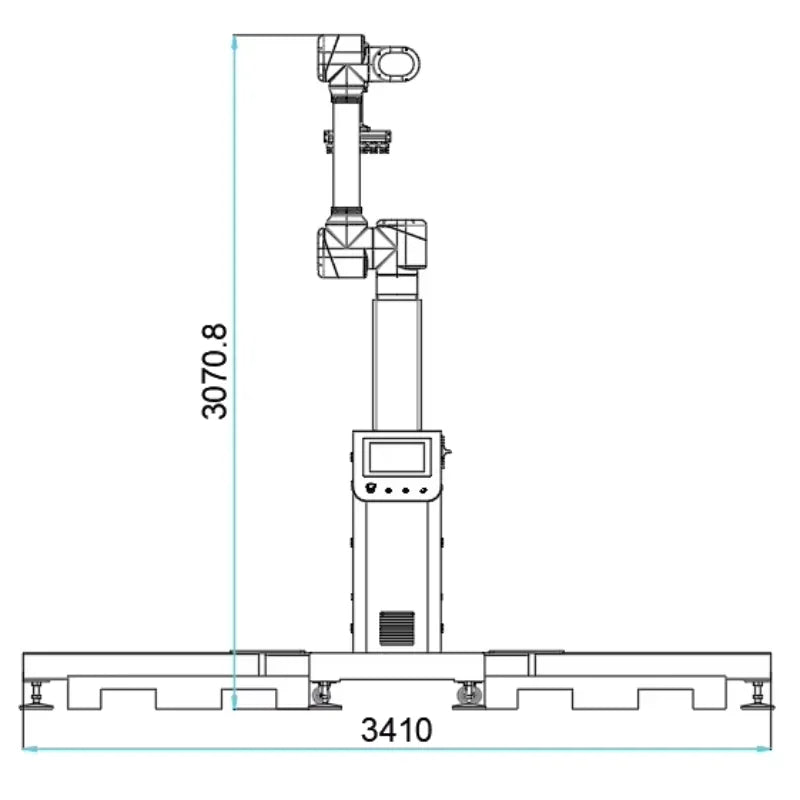

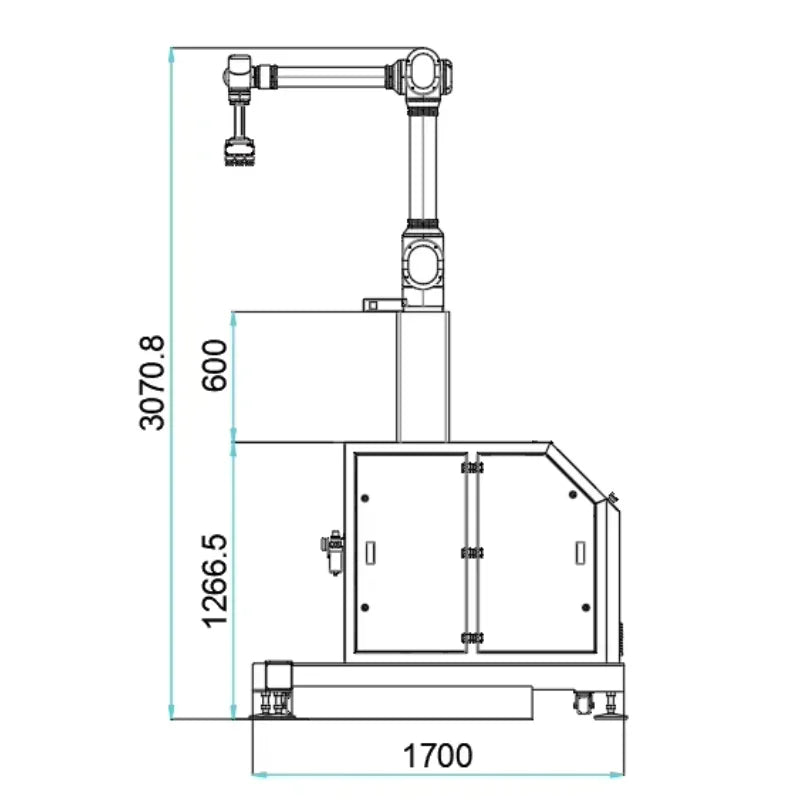

Dimensions (L × W × H)			3410×1700×3100
Air source (Own air source required)			0.5~0.7Mpa; Air consumption:200L/min
Power			AC380V,50Hz±5%,The control voltage is 24V DC
Total Power(kw)			3kw
Weight(kg)			About600kg

We offer customized model in accordance with users' specific demand. OEM and ODM orders are acceptable.

Features & Advantages



1.Simple operation, one-click start, stable, efficient, safe and reliable;
2.Support a variety of palletizing formula, fool operation, easy to learn and understand;
3.High degree of automation, low energy consumption, low operating cost, reduce labor;

4.Small footprint, flexible and can be moved at will;
5.Safe and convenient, no guardrail protection.
